cjdiag — Diagnostic Tools for Conjoint Survey Experiments

What cjdiag does

Standard conjoint analysis tools (cjoint, cregg) estimate Average Marginal Component Effects (AMCEs), the causal effect of changing a single attribute level. The AMCE is identified by the design’s randomisation and, as Hainmueller, Hopkins, and Yamamoto (2014) note, rests on no behavioral assumption. It answers a clear question: on average, how much does flipping a level shift the probability of being chosen?

It does not answer a second question that often comes up in interpretation: did respondents attend to a given attribute at all? A level can carry a small AMCE because respondents weighed it and were close to indifferent, or because a share of respondents never engaged with it. The AMCE averages over both cases. In cases where there is strong hetereogeneity, an AMCE might also look very small or non-existent. Consider questions where young and old respondents disagree.

cjdiag adds a quantity that separates them: Average Effective Attendance (AEA), a between-subject test of whether an attribute level carries population-level signal in the choice data. The output is a p-value per level (see crt section below). cjdiag is a complement to cjoint and cregg, not a replacement: run those for AMCEs and marginal means, then run cjdiag for effective attendance on the same data.

It works at the level of individual attribute levels rather than aggregated attributes, because whether a level carries signal depends on the specific level the researcher chose (“no plans to look for work” rather than “Job Plans” as a whole).

Five methods, one interface

All methods are accessed through a single function, cj_fit(formula, data, method).

Estimand	`method =`	Question	When to use
Attendance test	`"crt"`	Which levels carry population-level signal? A p-value per level.	Report alongside AMCEs for an attendance verdict.
Level importance	`"forest"`	Which levels contribute most to predictive accuracy?	A model-free cross-check on the CRT ranking.
Decision structure	`"tree"`	How does a single tree order the levels into splits?	A readable one-picture summary of structure.
Decision order	`"nmm"`	In what order do levels separate choices?	When the decision order is of interest.
Individual attendance	`"marginal_r2"`	How much does each respondent’s choice depend on each attribute?	When you want per-respondent heterogeneity.

The crt method is the one to report for an attendance verdict; the others read the same signal from different angles and serve as cross-checks. The verdict has been validated against eye-tracking: the levels crt flags as attended track the levels respondents fixate most in the Jenke et al. (2021) data.

The attendance test

crt fits an L1-penalised logistic regression (HierNet; Bien, Taylor, and Tibshirani 2013) of the choice on every attribute-level dummy, and reads two quantities off the regularisation path.

The λ-survival path orders the levels. As the penalty rises, weak coefficients are driven to zero one at a time; a level’s survival point is the largest penalty at which its coefficient is still non-zero. A level shrunk to zero early carries no choice-discriminating signal.

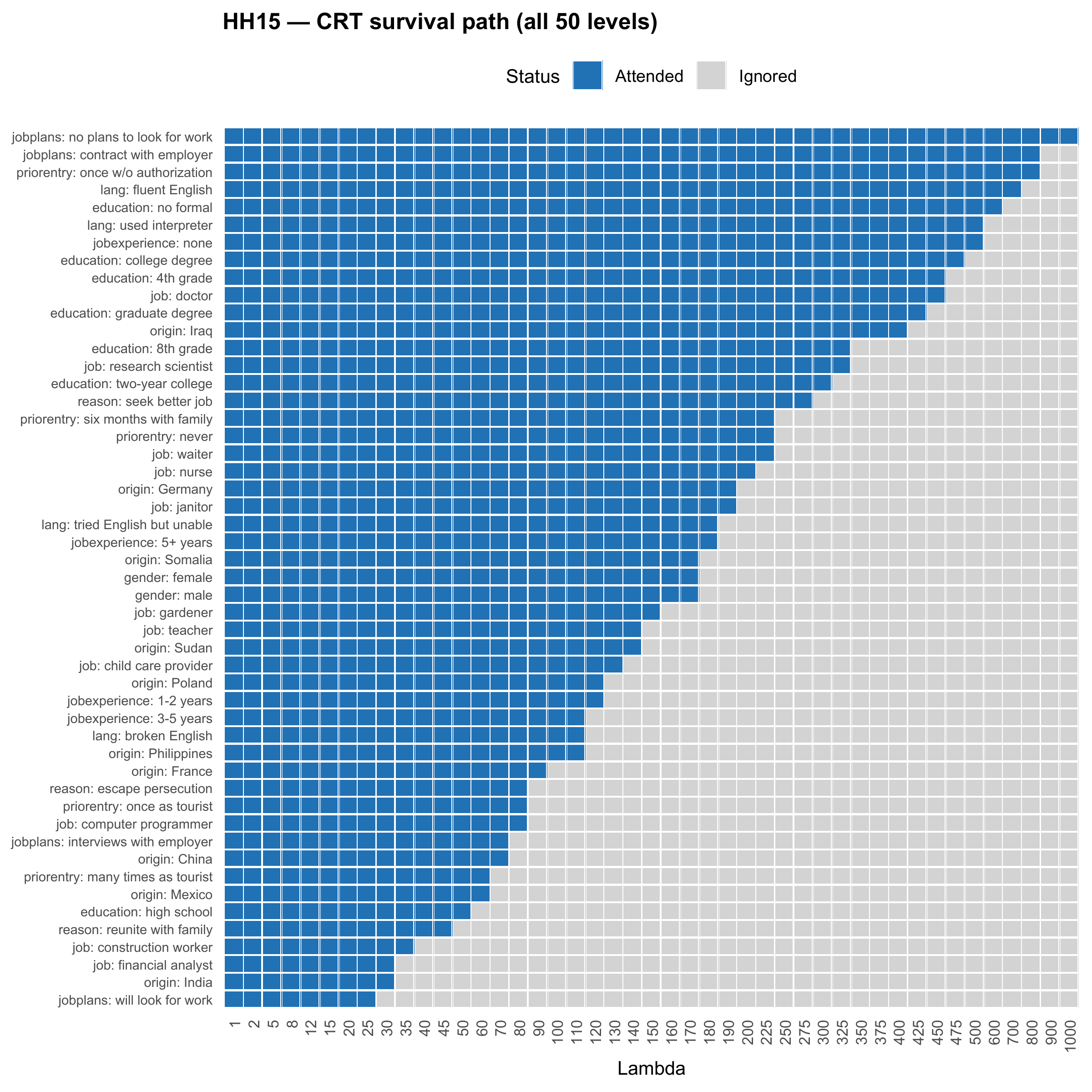

CRT lambda-survival path, Hainmueller and Hopkins (2015) immigration conjoint

The CRT p-value turns the path into a test. The conditional randomization test of Ham, Imai, and Janson (2024) compares the fit on the observed data to its distribution under resamples of one level’s column, drawn from the design’s known randomisation while the rest of the profile is held fixed. Because the design fixes that randomisation, the p-value is valid in finite samples. A level is declared attended when its p-value falls below 0.05.

Marginal means and CRT attendance verdict by level, Hainmueller and Hopkins (2015)

The marginal mean and the attendance verdict answer different questions. The marginal mean is an average marginal effect on the probability of being chosen; the crt test asks whether the level carries signal once the rest of the profile and respondent heterogeneity are accounted for. The figure places the two side by side for all 50 levels of the Hainmueller and Hopkins (2015) immigration conjoint, and they part for several levels: a level near the 0.5 indifference line can still be attended, and a level away from it can fail the test.

A cross-check: the random forest

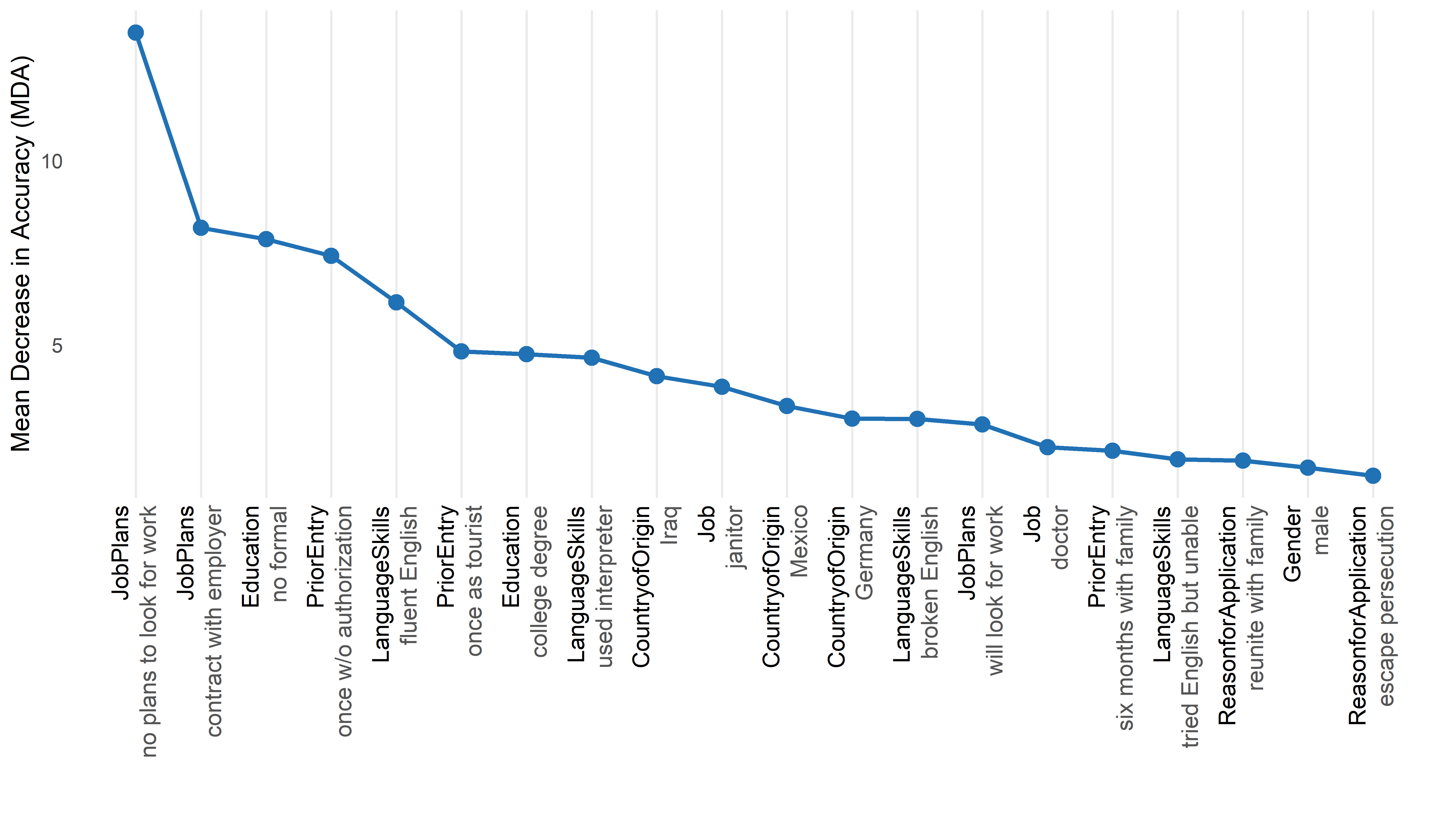

Random-forest level importance, Hainmueller and Hopkins (2015) immigration conjoint

The forest method ranks levels by Mean Decrease in Accuracy (MDA). It asks how much the forest’s out-of-sample predictions worsen when one level’s values are randomly shuffled. A level with high MDA is one the forest leans on; a level near zero is one it barely uses.

A readable single-sample view: the decision tree

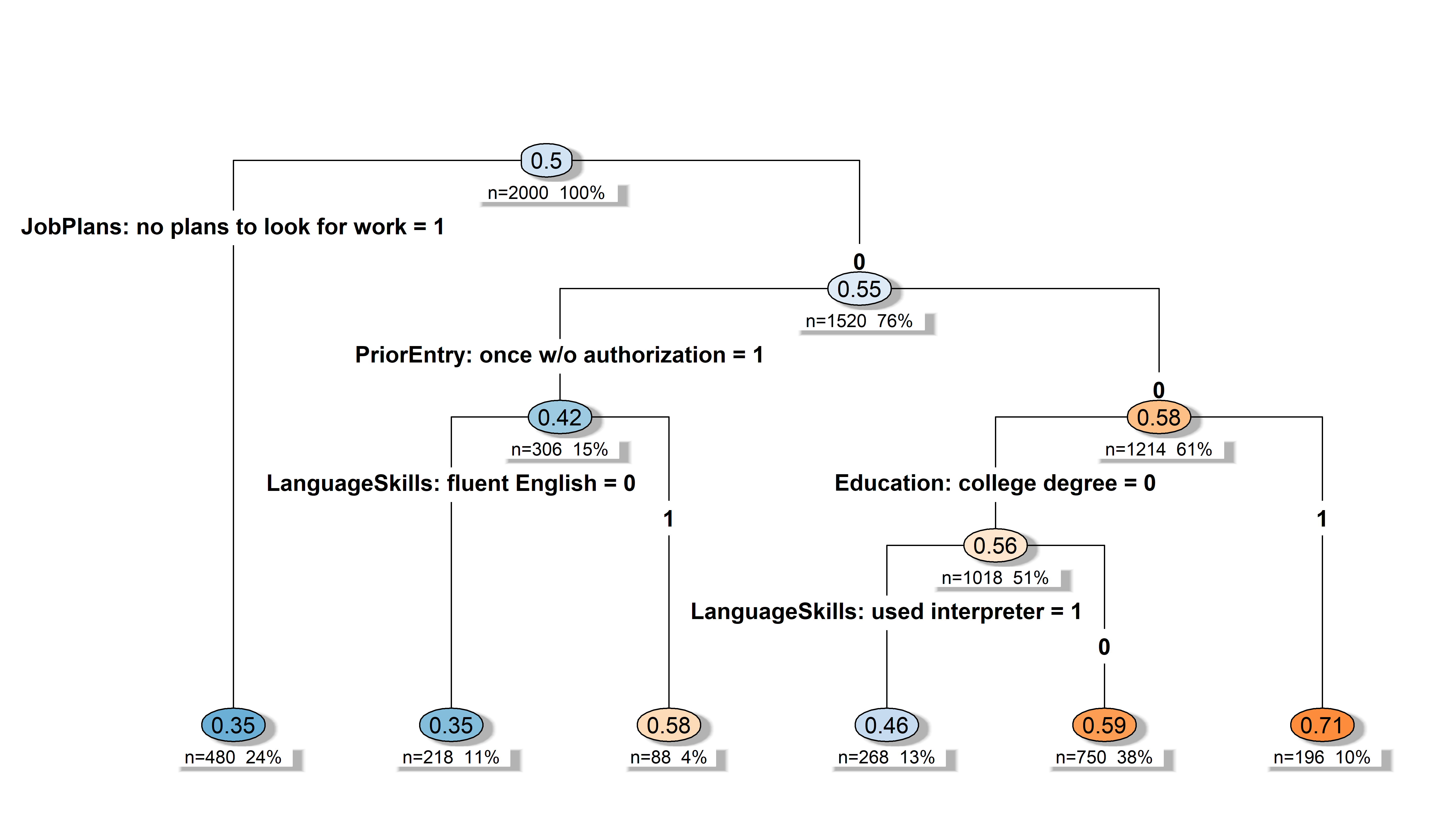

Decision tree, Hainmueller and Hopkins (2015) immigration conjoint

The tree method fits a single decision tree, which puts the structure in one picture. On the immigration conjoint, the root split is “no plans to look for work”; profiles carrying that level have an average chosen-rate of 0.35. Further splits pick up prior unauthorized entry and education, while several attributes (country of origin, gender, profession, application reason, job experience) do not enter the tree at all. The design varied them, but in this dataset they did not carry enough signal to be selected as a split. A single tree overfits its sample, so it is the readable summary rather than the estimate; the forest and the CRT path carry the numbers.

Installation

# install.packages("pak")
pak::pak("dkarpa/cjdiag")

References

Bien, J., Taylor, J., and Tibshirani, R. (2013). A Lasso for Hierarchical Interactions. The Annals of Statistics, 41(3), 1111–1141.
Breiman, L. (2001). Random Forests. Machine Learning, 45(1), 5–32.
Dill, J., Howlett, M., and Müller-Crepon, C. (2024). At Any Cost: How Ukrainians Think about Self-Defense Against Russia. American Journal of Political Science, 68(4), 1460–1478.
Hainmueller, J., Hopkins, D. J., and Yamamoto, T. (2014). Causal Inference in Conjoint Analysis: Understanding Multidimensional Choices via Stated Preference Experiments. Political Analysis, 22(1), 1–30.
Hainmueller, J., and Hopkins, D. J. (2015). The Hidden American Immigration Consensus: A Conjoint Analysis of Attitudes toward Immigrants. American Journal of Political Science, 59(3), 529–548.
Ham, D. W., Imai, K., and Janson, L. (2024). Using Machine Learning to Test Causal Hypotheses in Conjoint Analysis. Political Analysis, 32, 329–344.
Jenke, L., Bansak, K., Hainmueller, J., and Hangartner, D. (2021). Using Eye-Tracking to Understand Decision-Making in Conjoint Experiments. Political Analysis, 29(1), 75–101.
